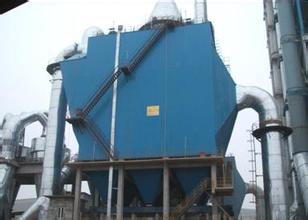

Air box pulse bag dust collector (Plenum-Pulse) is introduced in the digestion, absorption, USA fule (Fuller) based company technology, combined with China's actual conditions and efficient bag with ninety's level of technology developed by dust collector. This series of bag dust collector, the collection of sectional reverse blow and jet pulse until the advantages of all kinds of precipitator, overcomes the sectional reverse blow when the kinetic energy of the shortcomings, and expand the scope of the use of bag filter, improve the efficiency of dust collection, prolong the service life of the filter bag. It is not only widely used in building materials, metallurgy, machinery, chemical industry, has become a and O-Sepa class selected vertical powder machine, grinding, drying machine, finished cement, slag, coal mill and other recycling equipment. Crushing, packaging, storage is particularly suitable for the cement plant top, clinker cooling machine and various mill dedusting system.
Note: This equipment is also applicable to coal mill collection, but must increase flame and explosion proof measures, dust collector structure must change.
YFGM128-2xN series of air box pulse bag type dust remover technology parameter table
型号 技术参数 |
YFGM 128-2×6 |
YFGM 128-2×7 |
YFGM 128-2×8 |
YFGM 128-2×9 |
YFGM 128-2×10 |
YFGM 128-2×11 |
YFGM 128-2×12 |
YFGM 128-2×13 |
YFGM 128-2×14 |
||
处理风量 (m3/h) | A | >100g/Nm3 | 91000 | 107000 | 122400 | 137600 | 152900 | 168200 | 183500 | 198800 | 214100 |
B | ≤100g/Nm3 | 137600 | 16000 | 183600 | 206400 | 229400 | 252400 | 275300 | 298200 | 321200 | |
过滤风速(m/min) | 0.8〜1.2 | ||||||||||
总过滤面积(m2) | 1912 | 2231 | 2550 | 2868 | 3187 | 3506 | 3824 | 4143 | 4462 | ||
净过滤面积(m2) | 1753 | 2072 | 2391 | 2709 | 3028 | 3347 | 3665 | 3984 | 4303 | ||
除尘器室数(个) | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | ||
滤袋总数(条) | 1536 | 1792 | 2048 | 2304 | 2560 | 2816 | 3072 | 3328 | 3584 | ||
除尘器阻力(Pa) | <1700 | ||||||||||
出口气体含尘浓度(mg/Nm3) | ≤30 | ||||||||||
除尘器承受负压(Pa) | 9000 | ||||||||||
清灰压 缩空气 |
压力(MPa) | 0.4 〜0.6 | |||||||||
耗气量(Nm3/min) | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 | 2.2 | 2.4 | 2.6 | 2.8 | ||
输灰斜槽配套风机 | 9-19No.4.5A 4kW | ||||||||||
重锤双层翻板阀 | 卸灰口法兰500 x 1000 | ||||||||||
滤袋规格(mm) | Φ130x3050 | ||||||||||
保温面积(m2) | 240 | 269 | 298 | 328 | 356 | 386 | 415 | 445 | 474 | ||
设备总重(约值,不包括保温层)(kg) | 35000 | 40000 | 45100 | 50200 | 55500 | 60600 | 66100 | 71500 | 77000 |
