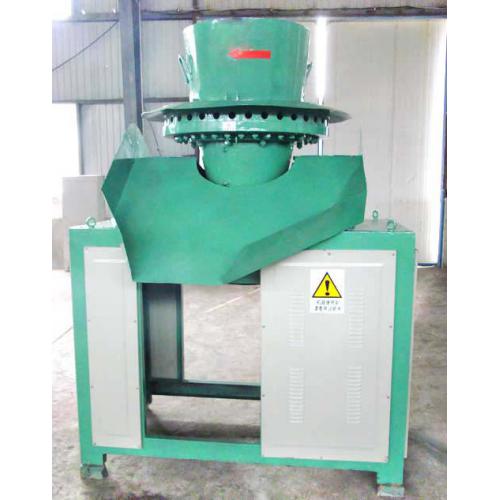

SYH series of block making machine
Product features
The 1 is mainly used for compact molding processing of straw densification processing, can also be used for forage.
2 the product has the advantages of reasonable structure, high efficiency, low energy consumption, good forming effect, strong adaptability, simple operation, convenient maintenance, reliable performance etc..
3 the equipment can be cutting length (or rubbing) rod solid biofuel crops straw stalk 50 mm below the pressing section size of 30~40 mm, 10~100 mm in length (or livestock feed), after pressing particles than the major, small volume, convenient storage box transportation, is the quality of the solid fuel high volatile, its calorific value is 3200~4500 kcal, inflammable, less ash, low cost, can replace wood, coal, fuel gas lamps, widely used in heating stove, life, boiler, biomass power plant etc..
Technical parameters
| 型号 | YLBM1200 | YLBM1800 | YLBM2500 | YLBM3000 |
| 功率（kW） | 30 | 37 | 45 | 55 |
| 产量（t/h） | 0.5-0.8 | 0.8-1.0 | 1.0-1.2 | 1.2-1.6 |
| 转速（r/min） | 980 | 980 | 980 | 980 |
| 电压（V） | 380 | 380 | 380 | 380 |
| 模具直径（mm） | 760 | 810 | 980 | 1000 |
| 模孔数量 | 30 | 36 | 45 | 60 |
| 压块尺寸（mm） | 32*32 | 32*32 | 32*32 | 32*32 |
| 原料长度（mm） | 3-60 | 3-60 | 3-60 | 3-60 |
| 原料湿度（%） | 15-30 | 15-30 | 15-30 | 15-30 |
| 压块体积（t/m3） | 0.8-1.4 | 0.8-1.4 | 0.8-1.4 | 0.8-1.4 |
| 压块温度（℃） | Below 100℃ | Below 100℃ | Below 100℃ | Below 100℃ |
| 工作类型 | continuous working | continuous working | continuous working | continuous working |
|
外观尺寸 （mm） |
2700*1000*1800 | 2700*1000*1800 | 1700*1100*1800 | 2700*1200*2000 |
|
重量 |
2.5 | 2.8 | 3.2 | 4.3 |
