Product features
1, this series of chipper can log, wood branches, skin, waste veneer, bamboo, cotton stalks and other non wood fiber stem cutting into certain specifications sheet,
2, this series of chipper advanced structure, cuttingsheetof high, raw material adaptability, convenient operation, repair.

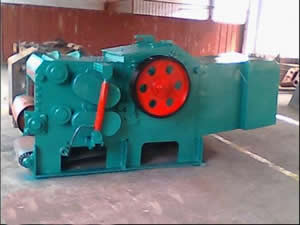

3, the machine is composed of a base, a knife roller, upper and lower feed roller, conveyor, hydraulic system components.
4, the base made of high strength steel welded, the supporting base of the whole machine. Two or three, four knife knife roller, with a specially made by pressure bolt, cutter, knife is fixed on the knife roller.
5, according to the thickness of the raw materials, the upper feeding roller assembly can use hydraulic system floating within a certain range. Cutting down the qualified sheet through screen hole down, exhausted from the bottom, sheet of will in the machine and cutting.
Technical parameters
型号 |
YLBX 213 |
YLBX 215 |
YLBX 216 |
YLBX 218 |
YLBX 2108 |
YLBX 2110 |
YLBX 2113 |
YLBX 2116 |
YLBX 21010 |
|
刀棍直径 | 300 | 500 | 650 | 800 | 800 | 1000 | 1300 | 1600 | 1000 | |
飞刀数(把) | 2 | 2 | 2 | 2 | 16 | 2×2 | 4×2 | 5×5 | 16 | |
进料口尺寸 | 120×300 | 160×400 | 180×500 | 225×680 | 600×250 | 330×1050 | 400×1250 | 600×1250 | 600×300 | |
刀棍转速(转/分) | 730 | 590 | 590 | 650 | 650 | 550 | 375 | 310 | 550 | |
进料速度(米/分) | 38 | 38 | 37 | 37/25 | 26 | 38 | 44 | 38 | 22 | |
加工原料较大直径(mm) | 90 | 105 | 120 | 160 | 200 | 210 | 250 | 310 | 300 | |
木片长度(mm) | 26 | 26~30 | 30/22 | 30/20 | 20 | 30 | 30 | 30 | ≤20 | |
生产能力(m3/H) | 3~5 | 4~6 | 5~10 | 10~20 | 0~30 | 75 | 90-132 | 185 | 0~70 | |
主电机功率(KW) | 30 | 45 | 55 | 110 | 55 | 220 | 450-600 | 710 | 160 | |
喂料辊电机功率(KW) | 1.1×2 | 2.2×2 | 3×2 | 4×2 | 4×2(变频调速可选) | 7.5×2 | 11×2 | 18.5×2 | 7.5×2(变频调速可选) | |
油泵电机功率(KW) | 1.1 | 1.1 | 1.5(选配) | 1.5(选配) | 1.5(选配) | 2.2 | 2.2 | 4 | 2.2kw(选配) | |
重量(Kg) | 1200 | 2990 | 4070 | 7000 | 5700 | 12500 | 20000 | 32000 | ||
外形尺寸 (L×W×H) |
3680×870 ×900 |
1470×1550 ×970 |
4348×1730 ×1258 |
4670×2150 ×1500 |
2360×2070 ×1550 |
4340×3550 ×1500 |
5484×5400 ×1860 |
4360×3150 ×2200 |
